Solar Charge Controller

SolarAmp BG/ SolarAmp B/ SolarAmp B Auto Night Detection/
SolarAmp B For Lithium Battery/ SolarAmp mini/ DPLS-10

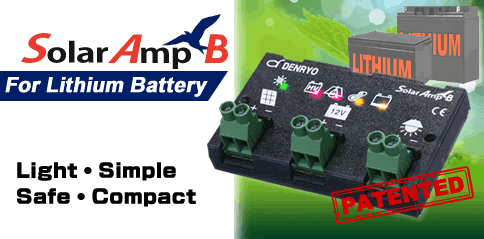

SolarAmp B

  • The World's Most Compact Design
  • For Lithium Battery
  • Low Self-Consumption
  • Rich Protection Circuitry
  • Over Discharged Battery Recovery
  • Easy Installation
  • LED Indication

The World's Most Compact Design

In the same class of 10A and 20A solar charge controllers, SolarAmp B is the lightest one in the world. The size is as small as a business card, and it takes less space than other ones in the control box.

For Lithium Battery

This model is specialized to charge lithium batteries. The charging voltage 12.4V fits with the voltage of lithium batteries.

Various Product Lineup

Four models of products could be chosen, according the conjuction with system voltage (12V/24V), current capacity(10A/20A), types of batteries and the function of auto night detection.
  • SolarAmp B load always on
  • SolarAmp B auto night detection
  • SolarAmp B for lithium battery
  • Low Self-Consumption

    The self-consumption current of SolarAmp B is about 2mA. It achieves longer stability of the system. Moreover, the low self-consumption has also improved the performance of the system.

    Multiple Protection Circuitry

    • Over / Low Voltage Protection
    • Over Temperature Protection
    • Reverse Polarity Protection
    • Overload Protection
    • Surge Protection
    • Short-circuit Protection

    Over-Discharged Battery Recovery

    SolarAmp B automatically resumes over-discharged battery by the battery recovery function. This benefits the systems in the some faraway areas in where the maintenance is difficult.

    Easy Installation

    SolarAmp B is easy to be installed. Without any complicated setting steps, just connecting the controller to photovoltaic module, battery and DC load.

    LED Indication

    SolarAmp B is equipped with 5 LED indicators with 3 colors to indicate the charging status, the battery status, and the load status.

    Model No.
    SA-BA10Li
    System Voltage
    12V
    Max. Input Voltage
    25Vdc
    Min. Input Battery Voltage
    6Vdc
    Max. PV Input Current
    10A
    Max. Load Current
    10A
    Self-consumption Current
    2mA(Typical)
    Charging Algorithm
    2-stage (Bulk, Absorption)
    Bulk Charging Voltage
    12.4Vdc
    High Voltage Protection  OVP
    13.5Vdc
     OVR
    12.8Vdc
    Over Discharge Protection  Warning
    10.0Vdc
     LVD
    9.0Vdc
     LVR
    10.5Vdc
    High Temperature Protection
    40℃ (Warning) /50℃ (Error) /40℃ (Recovery)
    Low Temperature Protection
    0℃ (Warning) /-10℃ (Error) /0℃ (Recovery)
    Battery Type
    3 series connection of 11.1V lithium ion rechargeable batteries
    Wire Size
    #18AWG~#12AWG
    Grounding
    Positive Ground
    Operation Temperature
    -10~50℃
    Storage Temperature
    -30~70℃
    Humidity
    5~95%RH(non-condensing)
    Dimensions(W×H×D)
    91×55×29(mm)
    Weight
    65g
    ◆The specifications are subject to change without notice.
