• High Weather Resistance
• Slim and compact design
• High Toughness
• Easy to Install and Use
• Multicolor LED Indicator
• Low Self-Consumption
• Cutting-edge Technology
• Adequate Protection Circuit
• Over Discharged Battery Recovery
• Made in Japan

High Weather Resistance

SolarAmp BG is fully encapsulated in a special plastic case and meets waterproof and dustproof IP68*. The operating temperature range is -40°C to +70°C, which is for use in harsh environments.
*Tested in water at a depth of 5m for 1 hour.

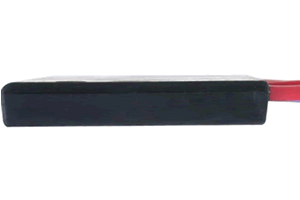

Slim and compact design

The size is as small as a business card. Thanks to no terminals, the thickness is only 8.5 mm.

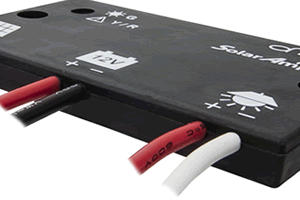

High Toughness

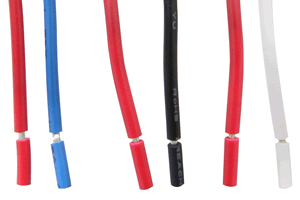

The housing by impact resistant special plastic and fully encapsulated structure prevent mechanical failure from in breaking of foreign body. Outdoor rated, connecting wires prevent terminals from rusting.

Easy to Install and Use

No installation settings are required. Automatically start after connecting the battery, photovoltaic module and DC load.

Multicolor LED Indicator

Green, yellow, and red, three-colors LED indicates charging status, warning or error.

Low Self-Consumption

The low self-consumption current brings long-term stabilization and increases system performance.

Cutting-edge Technology

SolarAmp BG utilizes the most advanced materials and components in Japan; achieving excellent durability and reliability.

Adequate Protection Circuit

• High / Low Voltage Protection
• Over Discharge Protection
• High Temperature Protection
• Reverse Polarity Protection
• Over Load Protection
• Short Circuit Protection
• Surge Protection

Over Discharged Battery Recovery

SolarAmp BG has the battery recovery function. This is convenient for the system in areas where systems are difficult to maintain on a regular basis.

Made in Japan

Both software and hardware are designed and manufactured in Japan.

Model No.		SA-BGA10	SA-BGB10
System Voltage		12V	24V
Max. Input Voltage		25Vdc	50Vdc
Min. Input Battery Voltage		6Vdc	8Vdc
Max. PV Input Current		10A
Max. Load Current		10A
Self-consumption Current		2mA(Typical)
Charging Algorithm		3-stage (Bulk, Absorption, Float)
Bulk Charging Voltage		14.4Vdc	28.8Vdc
Float Charging Voltage		13.7Vdc	27.4Vdc
High Voltage Protection		18Vdc	36Vdc
Over Discharge Protection	Warning	11.8Vdc	23.6Vdc
	LVD	11.5Vdc	23Vdc
	LVR	12.5Vdc	25Vdc
High Temperature Protection	Warning	60°C
	Error	80°C
	Recovery	60°C
Battery Type		Lead Acid Battery
Wire Size		＃12AWG
Grounding		Positive Ground
Temperature Coefficient		-30mV/°C	-60mV/°C
Operation/Storage Temperature		-40 to +70°C
Humidity		100％RH
Dimensions(W×H×D)		87×51×8.5(mm)
Weight		65g

◆The specifications are subject to change without notice.
