Photovoltaic Module

DBG012-24/ DBG100-12/ DB090-12/ DB060-12/ DB050-12/ DB032T-12/ DB030-12
DB020-12/ DB015-12/ DB010-12/ DB006-12/ DB003-12/ DC005-06

DB006-12

Model

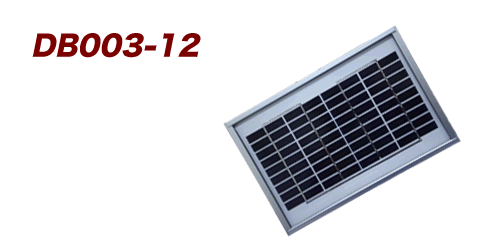

DB003-12
Max. Power Point (Pmax)
3.1W
Max. Power Point Voltage (Vmpp)
18.6Vdc
Max. Power Current (Impp)
0.17A
Open Circuit Voltage (Voc)
22.6Vdc
Short Circuit Current (Isc)
0.18A
Dimensions (D×W×H)
16×240×160mm
Weight
0.51kg
◆The specifications are subject to change without notice.
