Photovoltaic Module

DBG012-24/ DBG100-12/ DB090-12/ DB060-12/ DB050-12/ DB032T-12/ DB030-12
DB020-12/ DB015-12/ DB010-12/ DB006-12/ DB003-12/ DC005-06

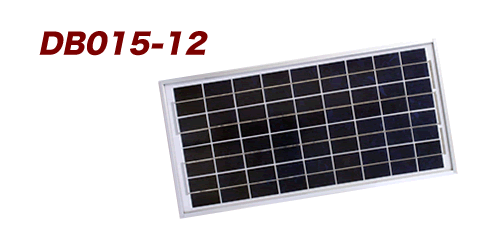

DB015-12

Model
DB015-12
Max. Power Point (Pmax)
15.8W
Max. Power Point Voltage (Vmpp)
18.6Vdc
Max. Power Current (Impp)
0.85A
Open Circuit Voltage (Voc)
22.4Vdc
Short Circuit Current (Isc)
0.87A
Dimensions (D×W×H)
16×244×511mm
Weight
1.5kg
◆The specifications are subject to change without notice.
