Photovoltaic Module

DBG012-24/ DBG100-12/ DB090-12/ DB060-12/ DB050-12/ DB032T-12/ DB030-12
DB020-12/ DB015-12/ DB010-12/ DB006-12/ DB003-12/ DC005-06

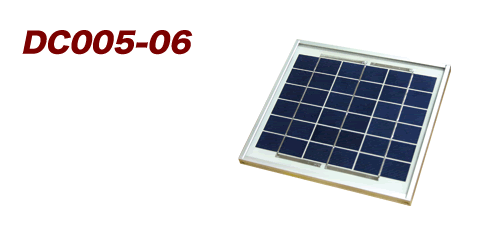

DC005-06

Model
DC005-06
Max. Power Point (Pmax)
5.0W
Max. Power Point Voltage (Vmpp)
9.02Vdc
Max. Power Current (Impp)
0.55A
Open Circuit Voltage (Voc)
11.03Vdc
Short Circuit Current (Isc)
0.59A
Dimensions (D×W×H)
16×242×216mm
Weight
0.7kg
◆The specifications are subject to change without notice.
